A Detailed Look at Chevy Bolt EV Charging Times by Level and Key Influencing Factors
Understanding how long does it take to charge a Chevy Bolt is crucial for efficiently managing daily commutes and longer road trips. Continuing to our previous comprehensive guide on How to Charge Chevy Bolt, we’ll hereby outline precisely how charging times vary depending on the charger type and explain key factors that can influence these durations. Knowing this will help Bolt EV owners plan their charging schedules and optimize their driving experience.
Chevy Bolt Charging Specifications
To grasp how long does it take to charge a Chevy Bolt, it’s essential first to understand its core charging specifications. The Chevy Bolt EV features a robust 66 kWh battery pack and supports several different charging methods designed to fit various lifestyles and needs.

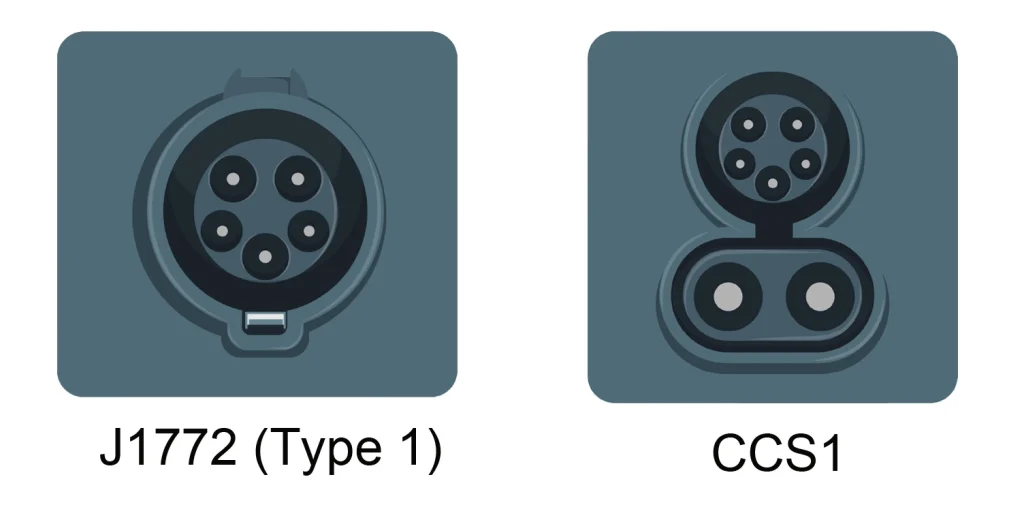

- Charging Ports: The Bolt EV includes a standard J1772 port for Level 1 and Level 2 AC charging and a CCS1 port for DC fast charging.
- Onboard Charger: Equipped with an 11.5 kW onboard charger, the Bolt EV efficiently manages power flow during charging sessions.
- Drivetrain: Front-wheel drive setup provides responsive handling, complementing the vehicle’s practical design and ease of charging.
Charging Time by Charger Level
Based on electricity consumption rate disclosed, we’ve done an ideal calculation of the Chevy Bolt EV charging time through different types of charging method for your reference.
Level 1 Charging (120V)
Charging your Chevy Bolt EV using Level 1, which employs a standard 120V household outlet, is the slowest method. Typically, this approach is suitable for overnight charging when minimal range is needed daily.
- Charging Speed: Approximately 5.3 miles of range per hour
- 0%-100% Charge: Around 44.1 hours
- 10%-80% Charge: Approximately 30.9 hours
- Best For: Emergency or minimal daily use
- Efficiency Estimate: About 85%
Level 2 Charging (240V)
Level 2 charging significantly reduces the time it takes to charge your Chevy Bolt EV, making it highly suitable for daily use. Level 2 chargers require a 240V connection, typically available in homes or public charging stations.
- Efficiency Estimate: Around 95%
- Recommended Chargers: Chargers rated between 32A and 40A offer an optimal balance between speed, cost, and ease of installation.
DC Fast Charging (CCS1)
For rapid charging needs, particularly during road trips, DC fast charging (CCS1) is the ideal solution. While more expensive per session, it dramatically reduces the time required to recharge the Bolt EV’s battery.
- Max Charging Power: 55 kW
- Charging Speed: Approximately 3.1 miles of range per minute
- Charge from 10%-80%: About 101 minutes
- Adding 30 Miles of Range: Roughly 9.6 minutes
- Adding 100 Miles of Range: Approximately 32.2 minutes
Factors That Affect Charging Time
Understanding how long does it take to charge a Chevy Bolt also requires recognizing external factors that can affect charging durations:
- Battery State of Charge: Charging speeds slow as the battery nears full capacity, especially noticeable during DC fast charging sessions.
- Ambient Temperature: Extreme temperatures (both high and low) can significantly reduce charging efficiency and extend the necessary charging time.
- Charging Station Power: Higher-powered charging stations drastically reduce charging times compared to lower-powered chargers like Level 1 setups.
- Vehicle Condition and Age: Older batteries or vehicles that haven’t been properly maintained may experience reduced charging performance.

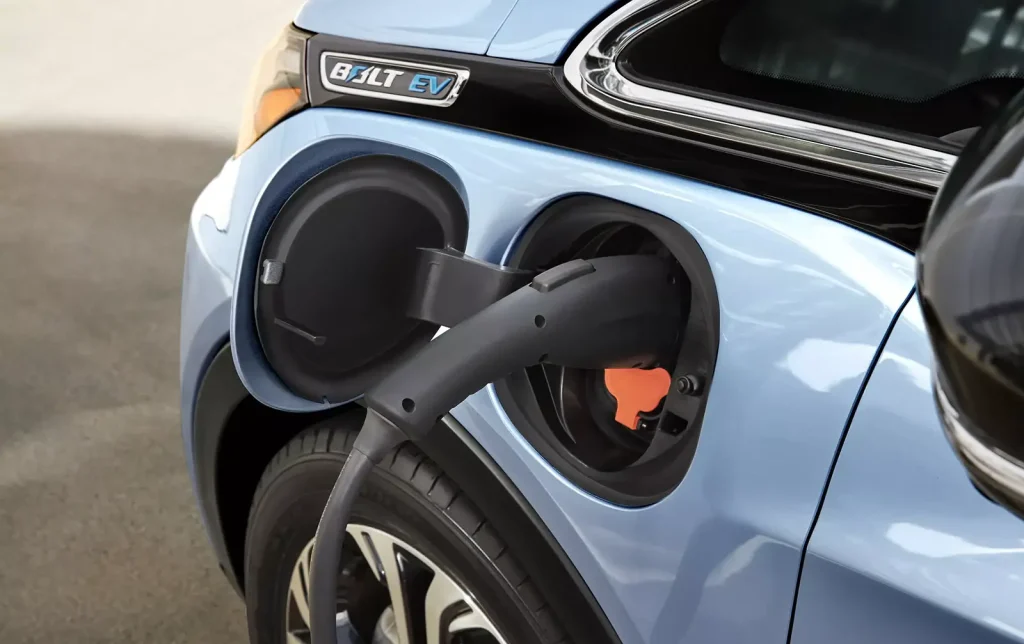

How to Choose the Right EV Charger
Selecting the right charger for your Chevy Bolt EV is essential for maximizing convenience and efficiency. Here’s a quick guide to help you decide based on your typical driving patterns and infrastructure:
- Level 1 Charger (120V): Suitable if you have minimal daily mileage needs or require a backup charging option.
- Level 2 Charger (240V): Ideal for regular daily use, providing a practical balance between charging speed and installation cost. Highly recommended for most Bolt EV owners.
- DC Fast Charger (CCS1): Crucial for drivers who regularly undertake long-distance travel, enabling rapid battery replenishment during short stops.
Evaluate your home’s electrical capacity, installation costs, daily mileage requirements, and convenience to select the most suitable charger for your needs.
Conclusion: How Long Does It Take to Charge a Chevy Bolt
Knowing how long does it take to charge a Chevy Bolt is vital to getting the most out of your electric vehicle experience. Level 2 chargers offer an optimal balance of speed, convenience, and cost-effectiveness for everyday use, while DC fast chargers are indispensable for extended trips. By understanding and managing the factors affecting charging time, Bolt EV drivers can enjoy maximum efficiency and convenience.
